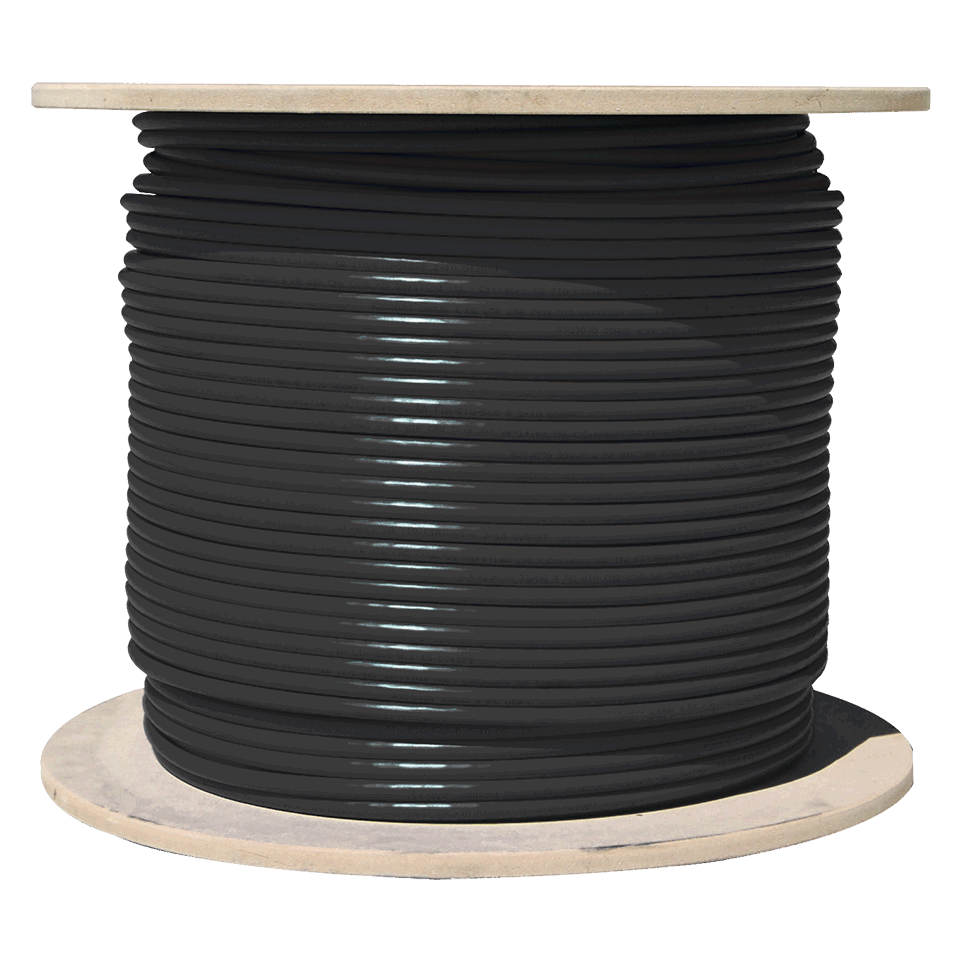

Cat6 Plenum Shielded Bare Copper 550Mhz Solid F/UTP 1000ft
Available: -4790
Sold:4890
$249.99
- 23AWG 4-Pair, solid bare copper conductors
- Aluminum foil shielded – F/UTP
- Bandwidth tested up to 550 MHz
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- cETLus Certified, RoHS-3 Compliant
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
(347) 480 1717Start Live Chat
Description
Plenum Rated Ethernet Cable
- The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.
Optimum Performance
- Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
- Bandwidth tested up to 550 MHz
- Unshielded twisted pairs – U/UTP
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
- Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox or reel.
- Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.
Compatibility Counts
- Terminate with shielded or unshielded Cat6 RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 0.95mm and an overall cable jacket diameter of 6.00mm.
Pure Solid Bare Copper Conductors
- Complies with UL, ANSI/TIA, and U.S. product safety standards.
- Bare copper is superior conductor material for data transmission and PoE use.
- The only industry and governmental approved type of conductor for use in Ethernet networks.
✓ CERTIFIED by CableSPECTRUM
- Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
Please follow and like us:
Additional information
| color | Blue, White |
|---|
